Summit X3 ALL Wheel Suspension & Front Wheel Tracking


The Baby Jogger Summit X3 front wheel has suspension it can be changed quickly from swivelling mode to locked mode with the remote lever on the seat side

Front Wheel Suspension


The front fork wheel mounting system incorporates an effective but robust suspension system.

It is the leading (front) wheel which causes the most abrupt jarring for the occupant upon impact with an obstacle (object, hollow or bump). Absorbing that impact improves the ride quality and reduces deflection of the pushchair from it's course.

Baby Jogger Summit X3 Front Wheel Suspension - click for larger imageBaby Jogger Summit X3 Front Wheel Suspension - click for larger image

Rear Wheel Suspension


The Summit rear wheels have a robust suspension system. Based on a 'sprung hinge' design the suspension permits movement up/down, forwards/back as is required to absorb jolts/bumps whilst preventing sideways movement - the lateral sway found with some rear suspension systems.

The large 16" rear wheels offer a shallow angle of attack to bumps or hollows, combined with the rear suspension these enable smooth ride to be enjoyed by the child.

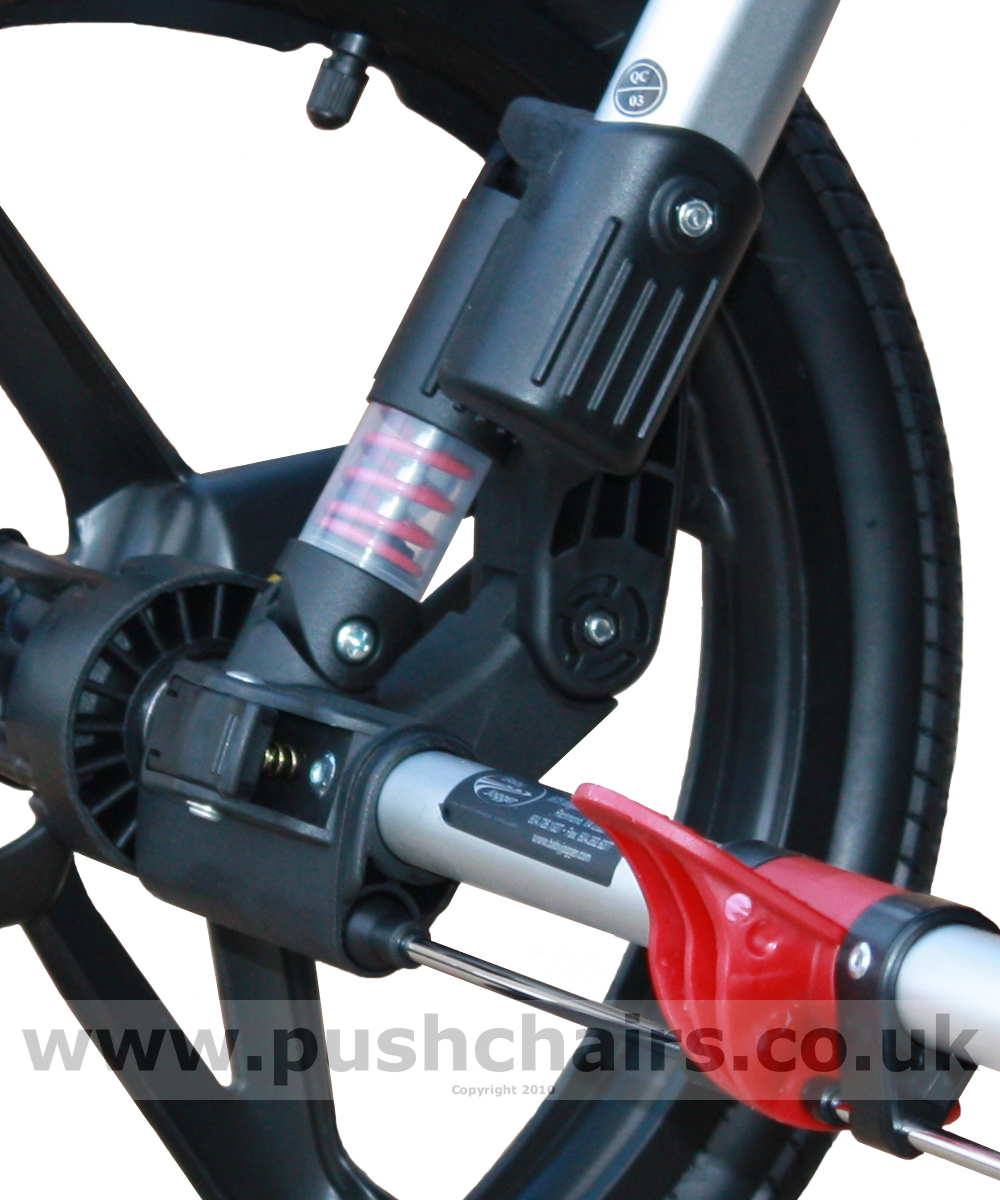

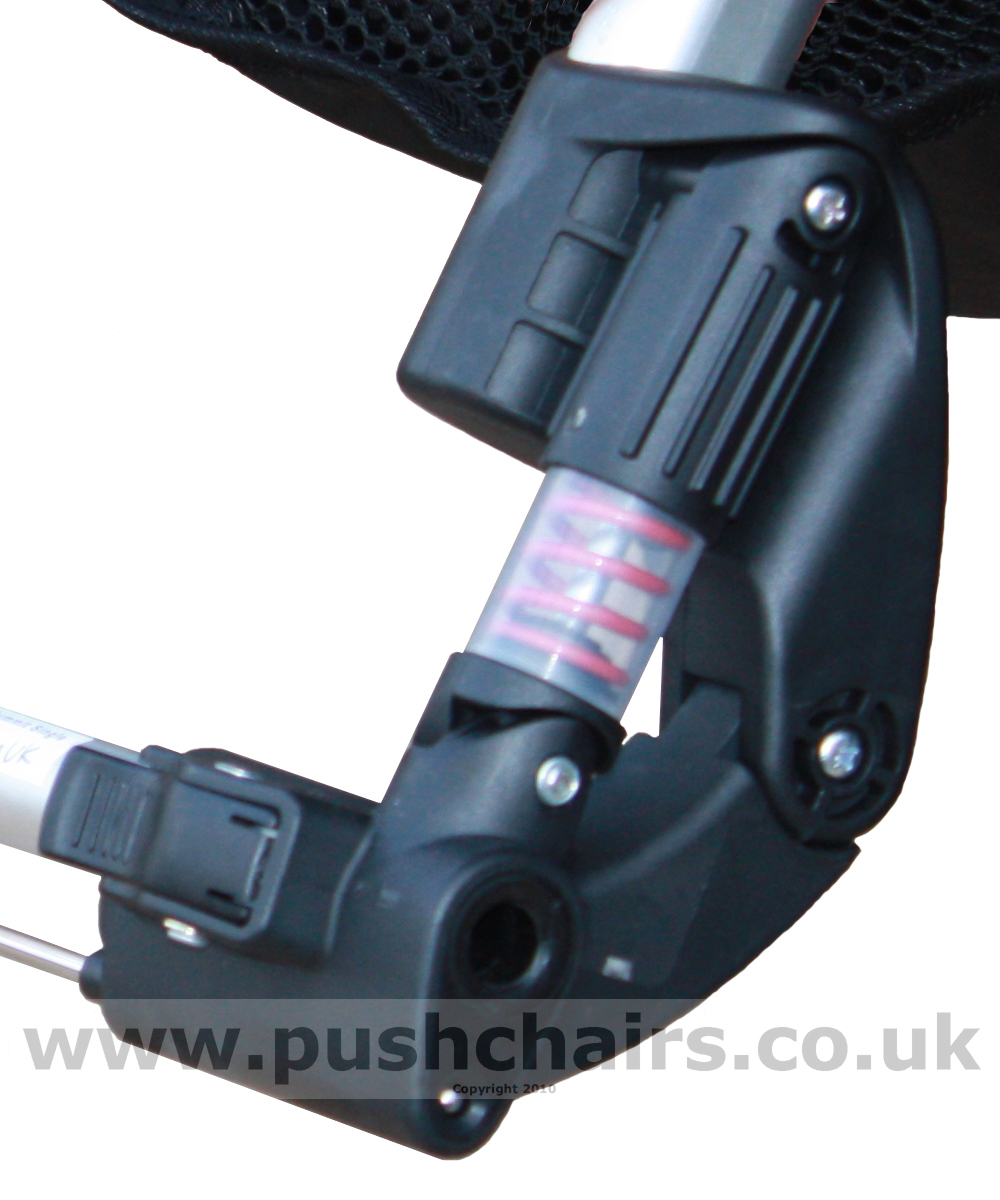

Baby Jogger Summit 'Sprung Hinge' Rear Wheel Suspension unit - click for larger imageBaby Jogger Summit Rear Wheel Suspension (no load) - click for larger imageBaby Jogger Summit Rear Wheel Suspension (loaded) - click for larger image

Front Wheel Tracking


The front wheel may be changed from swiveling to locked mode by operating a lever near the top of the right hand side of the handle

When locked the front wheel tracking can be adjusted by turning the Red Knob, this moves the lock mounting block

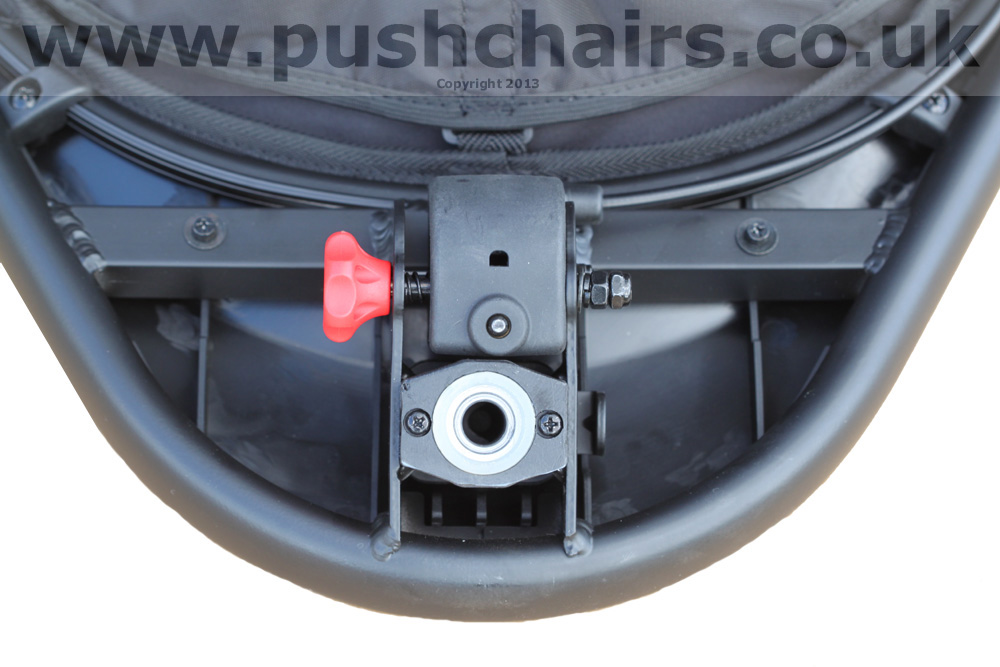

Baby Jogger Summit X3 Front Wheel Tracking- click for larger imageBaby Jogger Summit X3 Front Wheel Tracking- click for larger imageBaby Jogger Summit X3 Front Wheel Tracking- click for larger image
